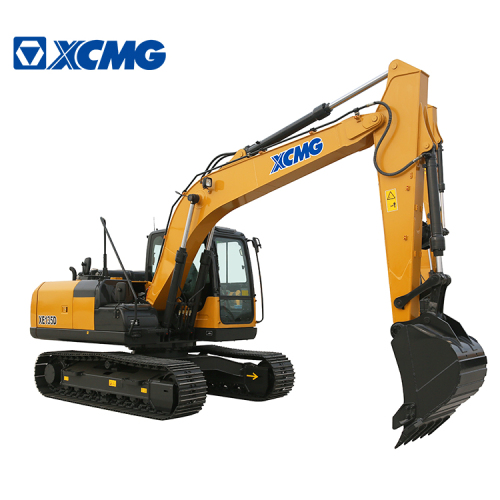

XCMG XE135D Hydraulic Excavator

Item No.: 0138
XE135D adopts a new engine jointly developed by XCMG and Cummins. It has strong power (the highest power among the same tonnage), high torque at low speed and high fuel economy.
Description
Description
XCMG XE135D 13.2 ton china new crawler excavator.
XE135D adopts a new engine jointly developed by XCMG and Cummins. It has strong power (the highest power among the same tonnage), high torque at low speed and high fuel economy. It can reduce fuel consumption by 7% compared with the previous generation. New generation internationally famous hydraulic elements are of high rated working pressure, high efficiency, precise control, small impact and long service life. 1. Ecological and economical * Customized XCMG exclusive engine can meet Euro stage IV Emission Standard. * Well-known hydraulic components, higher eficiency. * Minicomputer control technology makes operation more economical. 2.Multiple applications * Different boom, arm and bucket combinations can provide excellent all-around versatility. * Multi-functional work tool system can meet various operational requirements including digging, breaking and so on. 3. Comfortable operating experience * Air conditioner and heater ensure the appropriate temperature. * Air-suspension seat equipped with electric heating function. * Integrated control panel and large display screen provide multiple information.

Operation Weight

13200 kg

Bucket Capacity

0.61 m ³

Main performance

Travel speed(H/L)

5.2/2.9 km/h

Rotating speed

11 r/min

Gradeability

35°

Ground pressure

40.4 kPa

Bucket digging force

99.1 kN

Arm digging force

68 kN

Maximum traction

134 kN

Hydraulic system

Rated flow of main pump

250.8 L/min

Pressure of prime valve

31.4/34.3 Mpa

Pressure of travel system

34.4 Mpa

Pressure of swing system

25 Mpa

Pressure of pilot system

3.9 Mpa

Oil capacity

Fuel tank capacity

260 L

Hydraulic tank capacity

105 L

Engine oil capacity

11 L

Appearance size

Overall dimensions(L*W*H)

7795×2525×2880 mm

Width of platform

2490mm

Width of crawler

500 mm

Clearance under counterweight

931 mm

Min. ground clearance

466 mm

Min. tail swing radius

2445 mm

Working scope

Max. digging height

8638 mm

Max. dumping height

6174 mm

Max. digging depth

5546 mm

Max. vertical wall digging depth

4698 mm

Max. digging reach

8304 mm

Min. swing radius

2445 mm

Standard

Boom length

4600 mm

Arm length

2520 mm

Bucket Capacity

0.52 m ³
