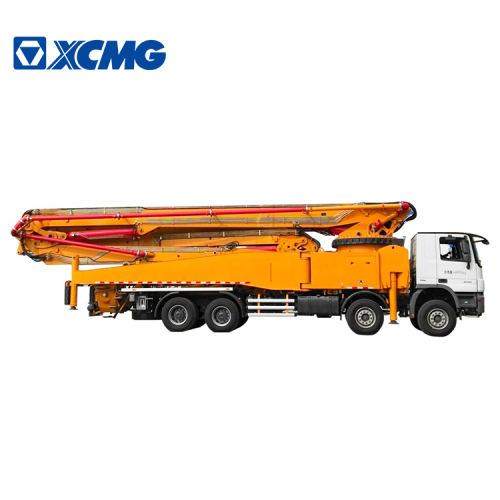

HB62K XCMG manufacture 62m vertical conveying distance truck mounted concrete pump HB62K
XCMG 62m HB62K Chinese new truck mounted concrete pump.
1,XCMG V7 series truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.
2,It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
Specification
|
Description |
Unit |
Parameter value |
|
|
Outline dimension |
mm |
15200×2500×4000 |
|
|
Overall weight |
kg |
49000 |
|
|
Chassis |
Model |
Actros4141 8×4 |
|
|
Manufacturer |
|||
|
Max. speed |
km/h |
85 |
|
|
Max. grade-ability |
% |
51.4 |
|
|
Wheelbase |
mm |
2300+4000+1350 |
|
|
Engine |
Model |
OM501LA·IV/3 |
|
|
Max. power |
kW |
305 |
|
|
Max. torque |
N·m/(r/min) |
2000/1080 |
|
|
Displacement |
L |
11.946 |
|
|
Emission standard |
Eruo IV |
||
|
Pumping system |
Theoretical output |
m³/h |
170 |
|
Concrete pumping pressure |
MPa |
8 |
|
|
Theoretical pumping times |
Time/min |
21~23 |
|
|
Delivery cylinder diameter ×stroke |
mm |
φ260×2200 |
|
|
Max. diameter of pumping concrete |
mm |
≤40 |
|
|
Filling height |
mm |
1540 |
|
|
Concrete slump range |
cm |
8~23 |
|
|
Placing boom |
Reach height |
m |
61.1 |
|
Reach depth |
m |
43.6 |
|
|
Slewingradius |
m |
55.9 |
|
|
Slewing angle |
° |
±270 |
|
|
Unfolding angle of the 1st section |
° |
90 |
|
|
Unfolding angle of the 2nd section |
° |
180 |
|
|
Unfolding angle of the 3rd section |
° |
180 |
|
|
Unfolding angle of the 4th section |
° |
240 |
|
|
Unfolding angle of the 5th section |
° |
210 |
|
|
Unfolding angle of the 6th section |
° |
90 |
|
|
Stabilizer span |
Longitudinal span of stabilizer |
mm |
12125 |
|
Transverse span of front stabilizer |
mm |
12125 |
|
|
Transverse span of rear stabilizer |
mm |
12200 |
|
|
Others |
Lubrication method |
Automatic lubrication |
|
|
Control method |
Manual/remote control |
||
|
Volume of water box |
L |
1000 |
|
