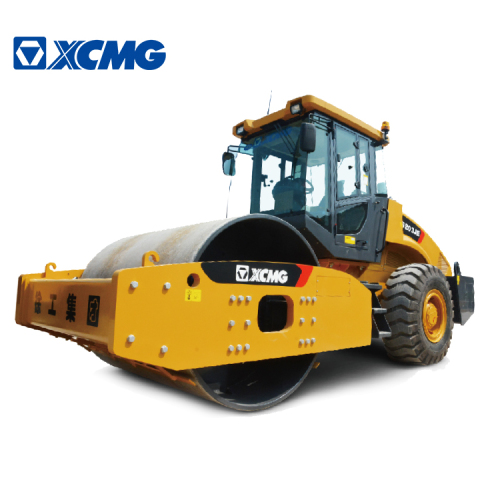

XCMG 20 tons single drum road roller XS203J
XS203J vibratory roller is a highly efficient and energy-saving super heavy machinery driven single drum vibratory roller independently developed by XCMG.This product is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, as well as the compaction of concrete and stabilized soil base materials in various large projects. It is the ideal compaction equipment for the construction of high-grade highways, airports, harbors, dams and industrial construction sites.
The Shangchai China-ll turbocharged low speed the engine is adopted to achieve the best fuel consumption working area and reduce the comprehensive fuel consumption by 10%; The low-speed the engine reduces noise emission and enhances the leakproofness of the whole engine to reduce noise by 2dB; Optimized transmission system matching to achieve the best compaction speed and increase the efficiency by 8%. 2.The vibration damping device with combined stiffness is adopted in the cab and frame, multidimensional reduction of cab vibration, significantly improves the working comfort of the operator. 3.Scientific and reasonable air duct design, the air conditioning system radiates heat independently to ensure sufficient air intake and improve the heat dissipation ability comprehensively, ensuring efficient operation of power system. 4.Electro-hydraulic control of the power shift gearbox, with independent intellectual property rights of the new electric control shift lever, significantly increase the operation comfort. 5. Using advanced hydraulic damping control technology, optimized vibration parameters, reliability and work quality is greatly improved.
Specification
Model |
XS203J |
Overall dimension(LxWxH) |
6220x2430x3200mm |
Operating weight |
20000kg |
Load applied on front drum |
10000kg |
Static linear load |
470N/cm |
Travel Speed |
3-9.4km/h |
Theoretical gradeability |
30% |
Min. outer turning radius |
6500mm |
Steering angle |
±33° |
Oscillating angle |
±10° |
Vibration frequency |
33/28Hz |
Nominal amplitude (high/low) |
1.9/0.95mm |
Exciting force (high/low) |
353/245kN |
Drum width |
2130mm |
Drum Diemeter |
1600mm |
Engine model |
SC8D175.2G2B1 |
Rater Power |
128kW |
Engine oil consumption |
205g/kW.h |
Hydraulic tank capacity |
170L |
Fuel tank capacity |
310L |
